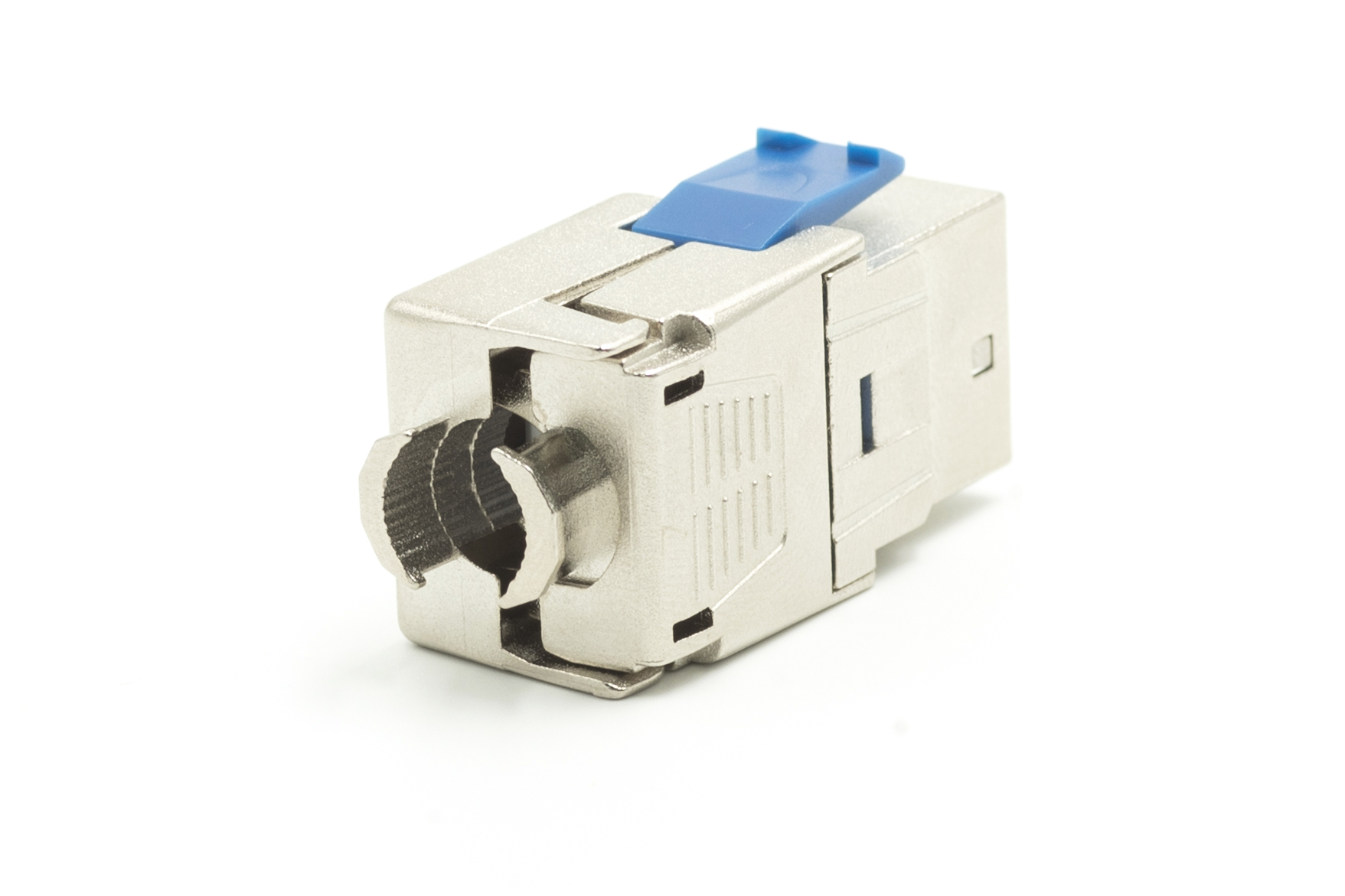

Cat 8 STP 180° Keystone Jack Toolless ( Butterfly )
FCC-KJ-C8STP-180TLS-B
The Cat8 transmission performance is in compliance with the ANSI/TIA 568-C.2-1 standard. FCT Cat8 solution is channel performance verified, meet PoE plus (IEEE802.3at) application. Our Cat8 keystone jack can fit with both 1U 24port & 48port keystone panel and suitable for the smallest home networks to very large data centers. So far the Cat8 solutions will be based on shielded cables and connectors because of alien crosstalk difficulties.
The Cat8 transmission performance is in compliance with the ANSI/TIA 568-C.2-1 standard. FCT Cat8 solution is channel performance verified, meet PoE plus (IEEE802.3at) application. Our Cat8 keystone jack can fit with both 1U 24port & 48port keystone panel and suitable for the smallest home networks to very large data centers. So far the Cat8 solutions will be based on shielded cables and connectors because of alien crosstalk difficulties.

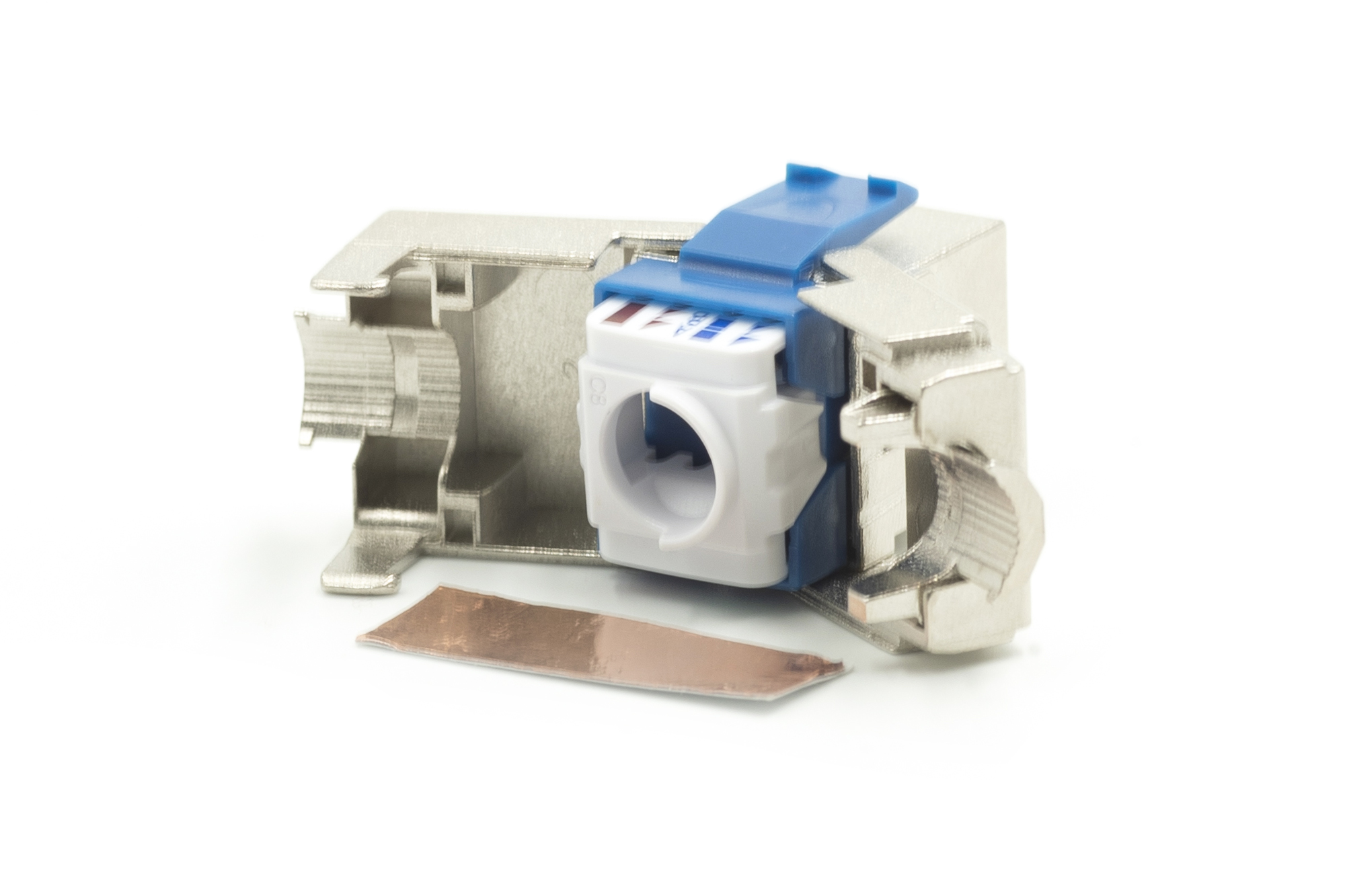

Full shielded with a rugged cast-encased rear, utilizing an innovative tool-free termination
Fits for 1U 24port and 1U 48 port keystone panel
ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8
IEEE 802.3af PoE and IEEE 802.3at PoE+ applications
Easy, reliable and stable quality by inset-molding and press-fit assembly process
Housing and cover material : Zinc die-casting with nickel plated
Insertion force : 30N max. (IEC 60603-7)
Retention strength : 7.7kg between jack and plug
Operating temperature : -10°C~60°C(ISO/IEC 11801, ANSI/TIA-568C.2-1)
Mating cycles : 750 cycles minimum
IDC mating cycles : 20 installation cycles minimum
