Cat 8 Modular Keystone Jack Type
FCC-C8-U/STP24P-BCE-KJ (1U 19’’ 24 Port Bracket Casette Empty Panel)
1U 24-Port U/STP snap-in type front access panel (Unloaded Empty Panel) provide another good choice for the installers with using 4 divided bracket.
1U 24-Port U/STP snap-in type front access panel (Unloaded Empty Panel) provide another good choice for the installers with using 4 divided bracket.
Fix the empty panel on the rack first
UTP, FTP Available

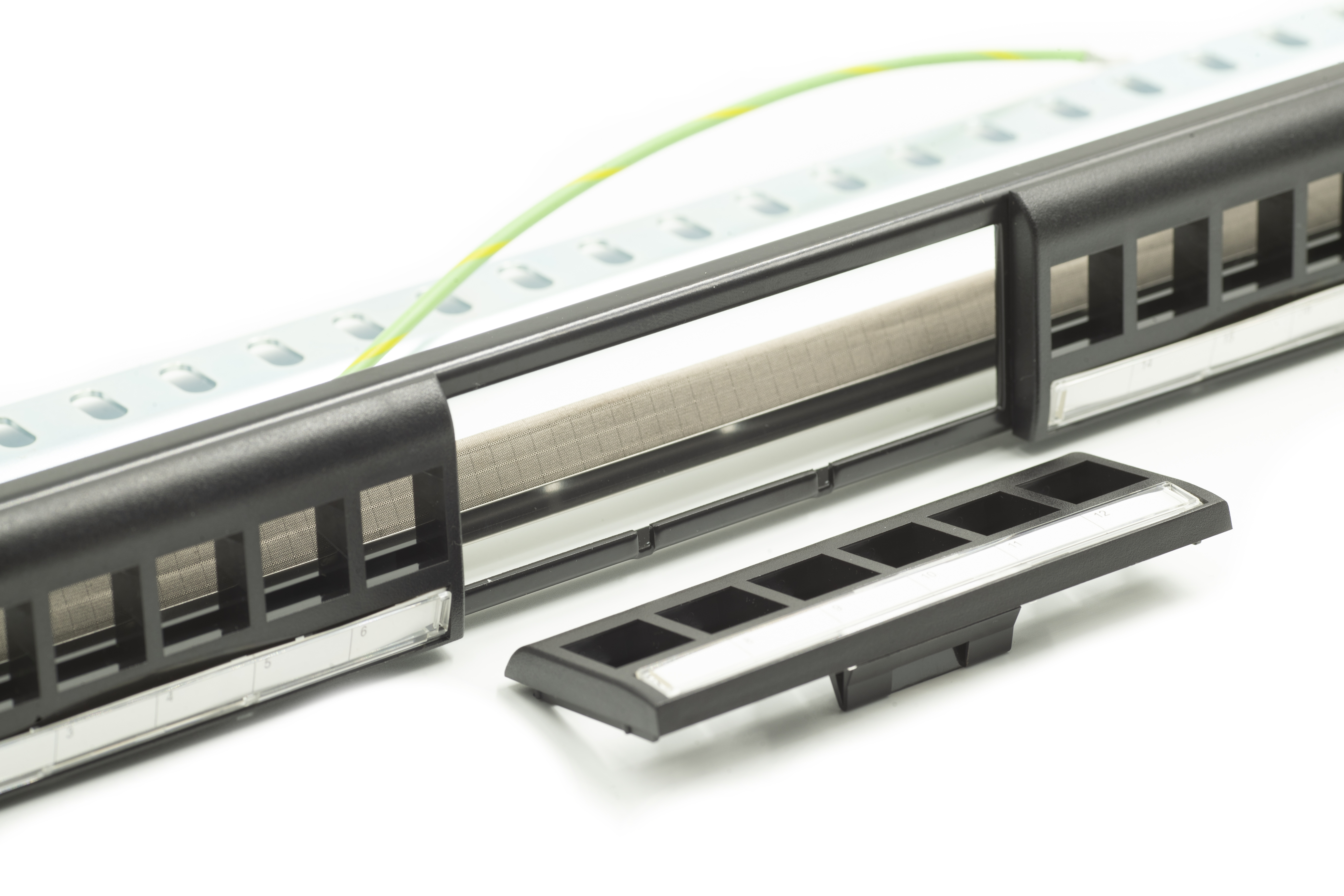

Pull the cables out of the panel and terminate the keystone jacks, then snap the keystone jacks on the frame
Push the frame onto the panel until a secured position.
Use the station ID paper to mark the different ports.
Panel & Bracket: SPCC black power coating finish
Frame: High-impact polycarbonate (PC resin), UL 94V0 rated, black or blue Available, 19.2mm locking
Grounding bar: Stainless steel, SUS 303
Conductive Fabric: Polyester, Ni, Cu Plating
Cushion Foam: Urethane foam
Tape: Conductive Adhesive Tape
Cable Manager: SPCC, Zine plated
ROHS 2 compliant
